Introduction to Super Capacitance System

        The large super capacitor management system needs to adopt a three-level architecture (BAMS + BCMU + CMU), and the small super capacitor system management is divided into two levels, namely, single super capacitor management and the entire group of super capacitor management. The entire group of super capacitor management uses the BCMU module, and the single super capacitor management uses the CMU-C5606 module.

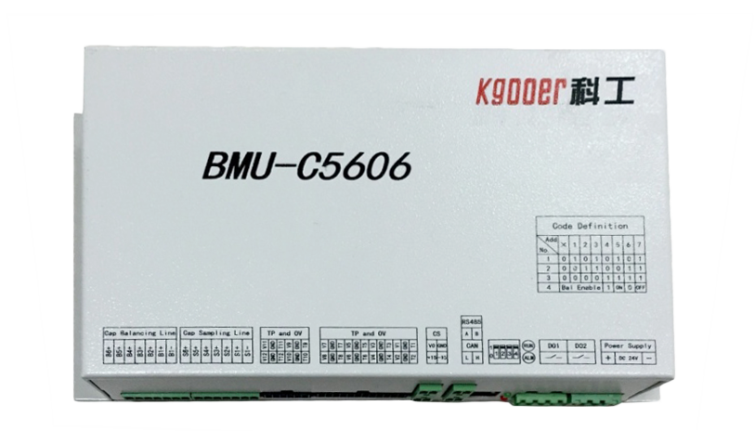

BMU-C5606

• Feature Description:
• real-time monitoring of single super capacitor voltage, temperature;
• Real-time calculation of single super capacitor SOC, SOH;
• real-time monitoring of charge and discharge current, the use of Hall, easy to install, reliable;
• The module has a balance to improve the consistency of the supercapacitor group;
• The module has dry contact output, can be field alarm or control;
• module with CAN and RS485 communication interface, real-time data and alarm information, remote monitoring capacitor group;
• Modular design, easy installation, use and maintenance, and the isolation between the modules, high reliability.
